sealing valve

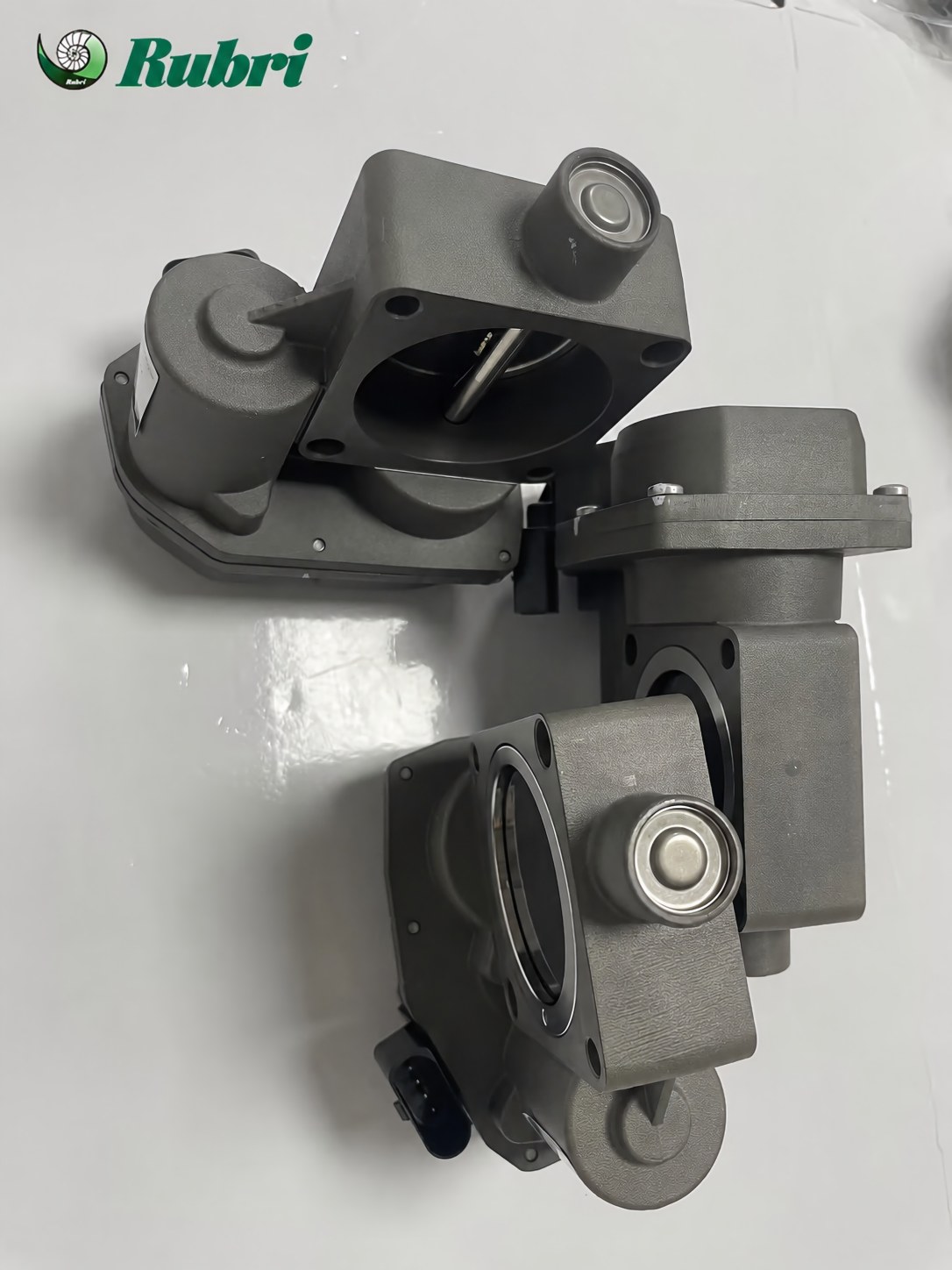

The air compressor in the fuel cell air intake and exhaust system is responsible for pressurizing the air and coordinating with the fuel cell sealing valve according to the needs of the fuel cell stack. Work to ensure that the air flow and pressure in and out of the fuel cell stack are within the appropriate range.fuel cell sealing valve adopts butterfly valve form. According to the application scope of the product, its function can be divided into stop valve,Back pressure valve,Bypass Valves, etc.

After the fuel cell is shut down, the shut-off valve and back pressure valve in the fuel cell system need to meet the sealing capacity. In order to achieve the cathode circuit in the shutdown state, the cathode circuit can be sealed to prevent air from entering the battery stack and affecting the life of the battery stack .

PRODUKTKATEGORIEN

Sie können uns auf jedem für Sie passenden Weg kontaktieren. Wir sind rund um die Uhr per E-Mail oder Telefon erreichbar.

KONTAKTIERE UNS

Neue Produkte

system			24vsystem	12vsystem
perfor mance	Operating voltage range (v)		18to32	9to 16
	Rated voltage (v)		twentyfour
	Test voltage (v)		28	13.8
	Control accuracy( ° )		0.2
	Peak current (A)	-40℃	5.5	9.9
		Room temperatur e	4.2	7.6
		120℃	3.0	5.5
	Rated current (A)	Room temperatur e	1.91	3.53
	Ice breaking torque (Nm)		≥3
	Linearity		±2%
	Feedback accuracy (v)		0.001
Response timeT90(ms)		Open	≤200
		closure	≤200
Self-reset (ms)		closure	≤300
Protection level			IP67&IP69K
Insulation properties			> 10MΩ
Pressure resistance			Leakage current＜3mA
Terminal resistance			none
life			8Year or2010,000 km
