This Alkaline Electrolysis Composite Membrane is a proprietary innovation crafted from organic polymers, ceramic powder, and a reinforcing liner. It is widely applied in water electrolysis systems to effectively separate hydrogen and oxygen without blocking the electrolyte. As a technologically advanced product, it serves as a critical component for high-efficiency green hydrogen generation.
Marke :
Rubri
ALKAINE ELECTROLYZED WATER COMPOSITE MEMBRANE
The key material for green hydrogen production

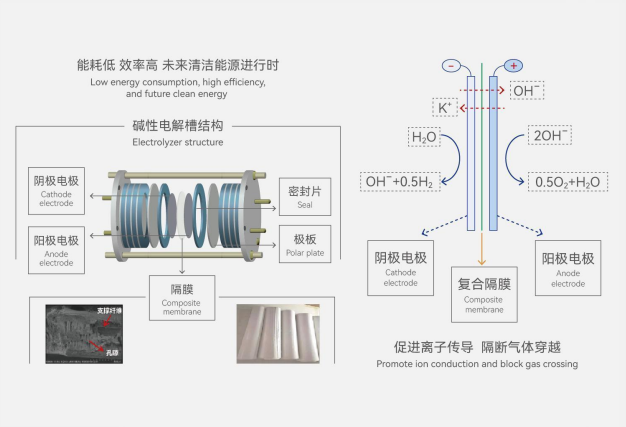

The new composite membrane independently developed by CE is composed of organic polymer, ceramic powder and lining support. Widely used in alkaline electrolysis of water, it can efficiently separate hydrogen and oxygen, and pass the electrolyte. It is a breakthrough and innovative product for the key technology in this field.

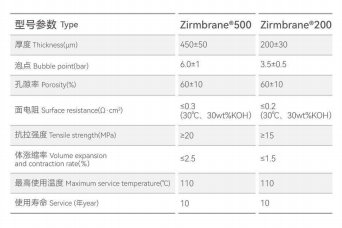

Product Specification
Features and advantages
Safe and stable
High purity
Long life
Customizable
The cross-section of composite membrane
The surface of composite membrane
Low ionic resistance, surface resistance ≤0.3 Ω·cm² (30℃, 30mV%KOH)
Long width range up to 2.5 meters, and the size can be customized according to customer needs
Chemically and mechanically stable, and life is more than 7 years
Permanent hydrophilic, strong electrolyte infiltration
Nanoporous structure, porosity ≥60±10%
High bubble point pressure, high operating safety
The purity of hydrogen is greater than 99.7%
In order to better adapt to the development of electrolyzer,who has developed a three - dimensional composite membrane based on the first nature principle, which is more suitable for the pressurized tank structure.
Mehr lesen
This Alkaline Electrolysis Composite Membrane is a proprietary innovation crafted from organic polymers, ceramic powder, and a reinforcing liner. It is widely applied in water electrolysis systems to effectively separate hydrogen and oxygen without blocking the electrolyte. As a technologically advanced product, it serves as a critical component for high-efficiency green hydrogen generation.
Mehr lesen
Die Technologie zur Wasserstofferzeugung mittels alkalischer Elektrolyse dominiert die Wasserstofferzeugung durch Wasserelektrolyse aufgrund ihrer Vorteile wie niedrigen Kosten, langer Lebensdauer und reichlich vorhandenen Rohstoffquellen. Die PPS-Membran aus dem Hochleistungskunststoff Polyphenylensulfid (PPS) bleibt auch bei hohen Temperaturen und in alkalischen Umgebungen stabil und eignet sich daher für die alkalische Wasserstoffproduktion.
Mehr lesen
